Reverie 136

Introducing the Reverie 136 — your ultimate off-grid companion, meticulously crafted with an aluminum backbone and premium marine materials for unmatched durability. Experience lasting build quality in a compact design that effortlessly maneuvers through city streets and slides into parking spots with ease. Built on a RAM Promaster 136 wheelbase, the Reverie 136 offers the perfect blend of versatility and comfort for your adventures on the road.

standard build $47,900

Standard Features

General

  • Entire camper build has an extruded aluminum structure. Strong, light and durable. The aluminum structure is bolted to the van resulting in a rock solid camper that is quiet driving down the road.

  • King Starboard panels used throughout. This is a material from the marine industry. It will not swell, delaminate or rot when exposed to UV, humidity or water. Never needs painted or refinished. Durable and easy to clean. It is an ideal material for building a van. Vastly superior to the laminated MDF found in many commercially built RVs.

  • Thinsulate insulation SM600L. The ideal insulation for a camper. Does not absorb or trap moisture like wool. Does not release irritating particles into the air like fiberglass or Rockwool can. Designed for vehicles. Works great as a sound deadener too.

  • Luxury Woven Vinyl Flooring. This is a high end single sheet product from the marine industry. No seams. Completely waterproof. Durable and easy to clean.

  • Cedar ceiling

  • Windows with sliding openings and screens in the sliding door and both rear doors.

  • Big steel entry step with aggressive grip so you don’t slip getting in or out of the van in any weather.

  • Colors of flooring, wall fabric, countertop, backsplash and wood chosen by you!

  • Custom bench cushion

Electrical

  • 460 amp hours of Epoch lithium power. Heated. Bluetooth monitoring.

  • 400 watts of solar power on the roof

  • Victron Multiplus 3000va pure sine wave inverter charger

  • Victron 100/50 MPPT Solar Controller

  • Victron Orion XS 50 amp DC-DC charger to charge via the alternator while driving.

  • Victron GX Touch 50. This smart display allows you to easily see everything happening in your electrical system in an easy to understand way. As well as control your inverter on/off.

  • Victron Cerbo GX, Lynx Shunt and Lynx Distributor

  • 15 amp Shore Power. Charge or power your system when plugged into an outlet at a campground or friends house

  • All top quality marine wiring. Tinned stranded copper.

Galley

  • Vitrifrigo C85 12 volt DC Danfoss compressor fridge. Sips power and has a usable freezer.

  • Solid wood cabinet doors and drawer boxes. High end conversion varnish finish.

  • Blum undermount drawer slides

  • Portable single burner induction cooktop

  • Solid surface countertop. The best material for a van countertop. Handles temperature changes and humidity very well. No cracking or warping like you can have with other countertop materials.

  • Ruvati marine grade stainless steel sink with pull out faucet

  • Aluminum backsplash and composite backsplash options

  • Aluminum upper cabinet with wood or acrylic doors

  • 120v outlet and 4 USB outlets. You will also find an additional 120v outlet and 4 more USB outlets on the bench

  • Under cabinet light strip. Not only offers bright white light for cooking or working at the countertop but also a red light for night time that doesn't affect night vision.

Bed

  • Full size 6” memory foam bed on our wooden slat system. The curved slats help make this a very comfortable sleeping experience. Also allows for great mattress breathability. Won’t mold like plywood bed platforms.

  • Padded marathon tweed fabric walls. A long lasting durable material. Designed to take abuse while also being comfortable to the touch and easy to clean. A big upgrade over uncomfortable noisy exposed wood walls.

  • Two reading lights. 12v LED reading lights for reading or browsing in bed.

  • USB outlet near the bedroom upper cabinet shelf. This outlet has one USB-A and one USB-C port. Right next to the shelf for charging your phones or powering your devices. If you mount an Ipad holder under the cabinet this makes it easy to power it while watching movies.

  • Aluminum upper cabinet with solid wood doors equipped with marine spring door supports that will never fail or slider doors. Under cabinet shelf.

Garage

  • 32” clearance in the garage under the bed. Enough room for a bike or other toys

  • Garage measures 32” high x 58” deep x 38” wide

  • Plenty of exposed T-slot for mounting anything you want.

  • Large pass through door if you need to carry longer items. Has a deadbolt lock so items in the garage don’t fly up into the cab if you have to break hard

  • LED garage light

Water System

  • 28 gallon fresh water tank inside the van

  • 15 gallon Icon ABS grey water tank mounted under the van

  • 2.5 gallon Bosch electric hot water heater on timer switch so you don’t forget to turn it off.

  • Uponor Pex-A plumbing

  • Outdoor shower at the rear of the van with hot water

  • Water level gauge next to your gravity fill

  • Dometic 5 gallon cassette toilet

Heating/Cooling

  • MaxxAir Vent Fans. Moves a lot of air through the van and uses very little power.

  • Houghton 9.5k BTU Air Conditioner with Heat Pump

Front Lounge

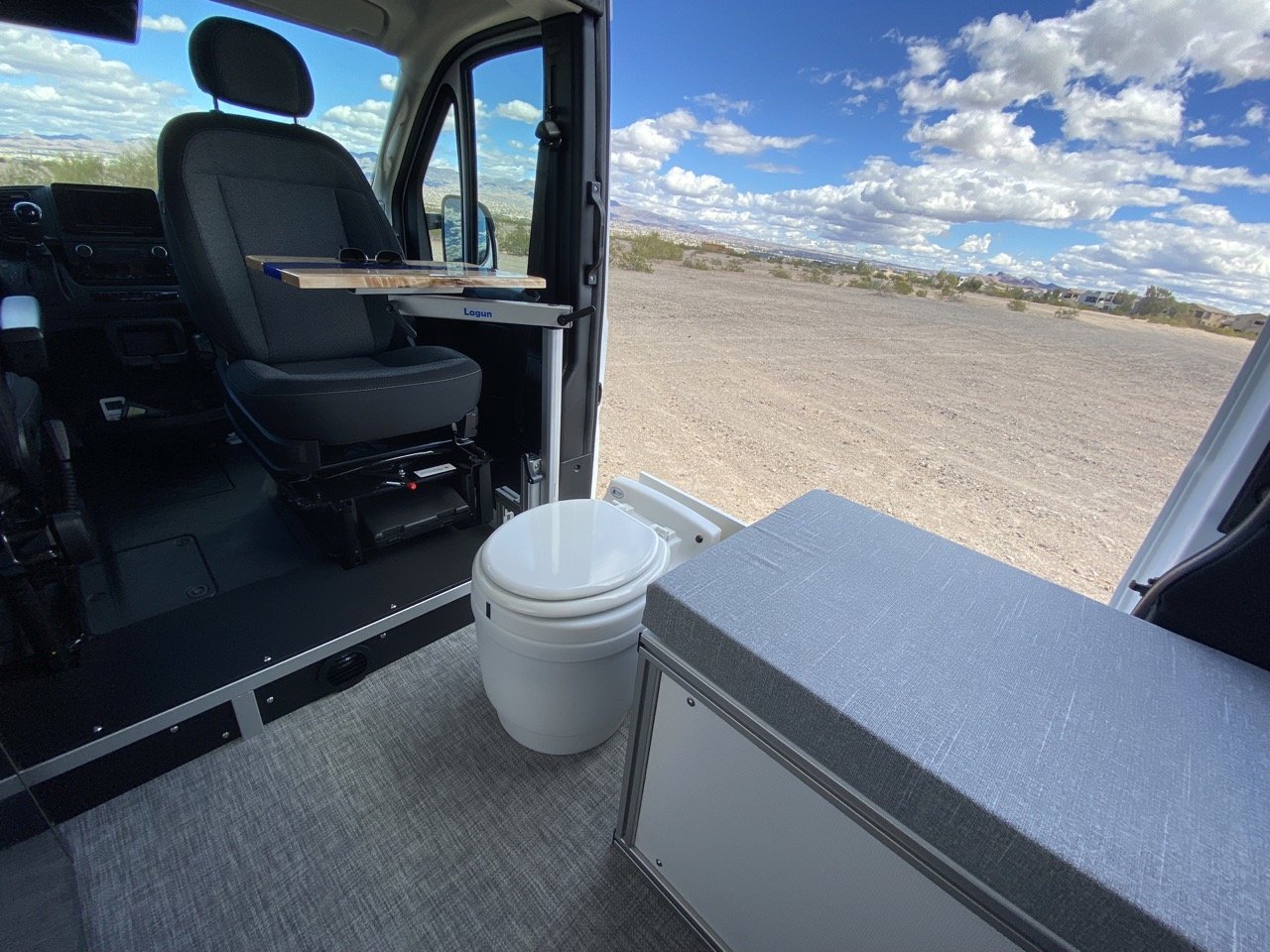

  • DOT approved swivel on the passenger seat

  • Folding Bamboo table on Lagun mount. This table is 21.5” x 28" when fully open.

Optional Upgrades

HOUGHTON QUIET AIR CONDITIONEr
included

The top of the line rooftop 120v powered air conditioning option on the market. 9.5k BTU. Quiet and efficient. If you know you will often travel in hot weather this is a worthwhile upgrade to ensure your comfort wherever the road takes you.

Run time off grid on standard battery is around 4-5 hours.

ESPAR GASOLINE HEATER
$3000

Do a lot of winter or shoulder season camping? You may want to upgrade to this powerful gas sipping heater. Enough heat output for even the coldest nights. And no additional fuel to remember to fill, it works right off of your main gas tank! Promasters Only.

Velit 2000R 12V DC air conditioner
$500

The Velit 2000R is our 12v air conditioning option. This unit is 8k BTU and draws between 20-60 amps. This gives you a longer runtime on battery power compared to the Houghton option.

Run time off grid on standard battery is around 8-9 hours.

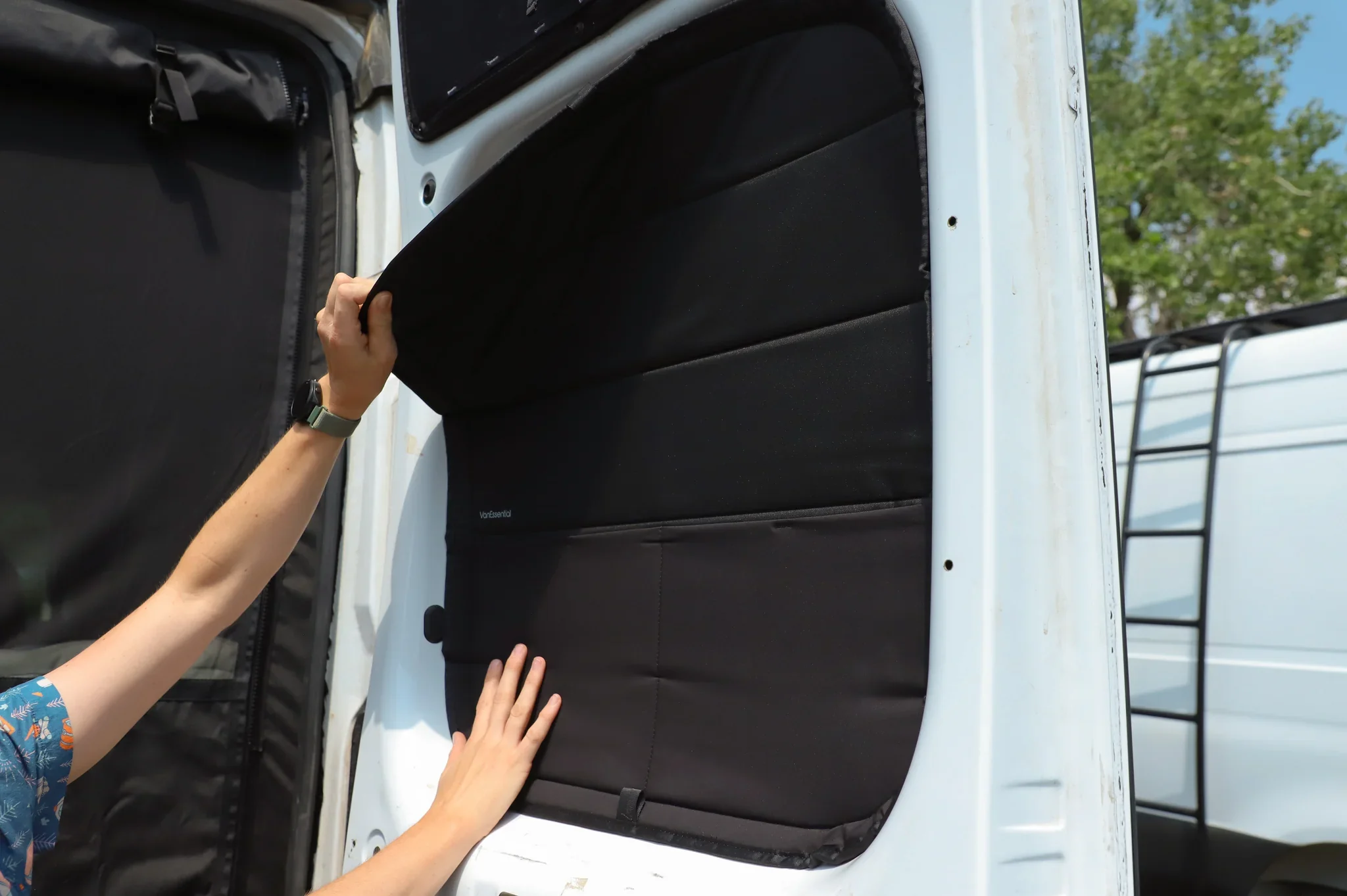

magnetic Rear Window Covers
$600

Magnetic insulated window covers for the sliding door window and both rear door windows. They fit great and are magnetic so when not in use you simply fold them up and leave them on the door. No need to store them!

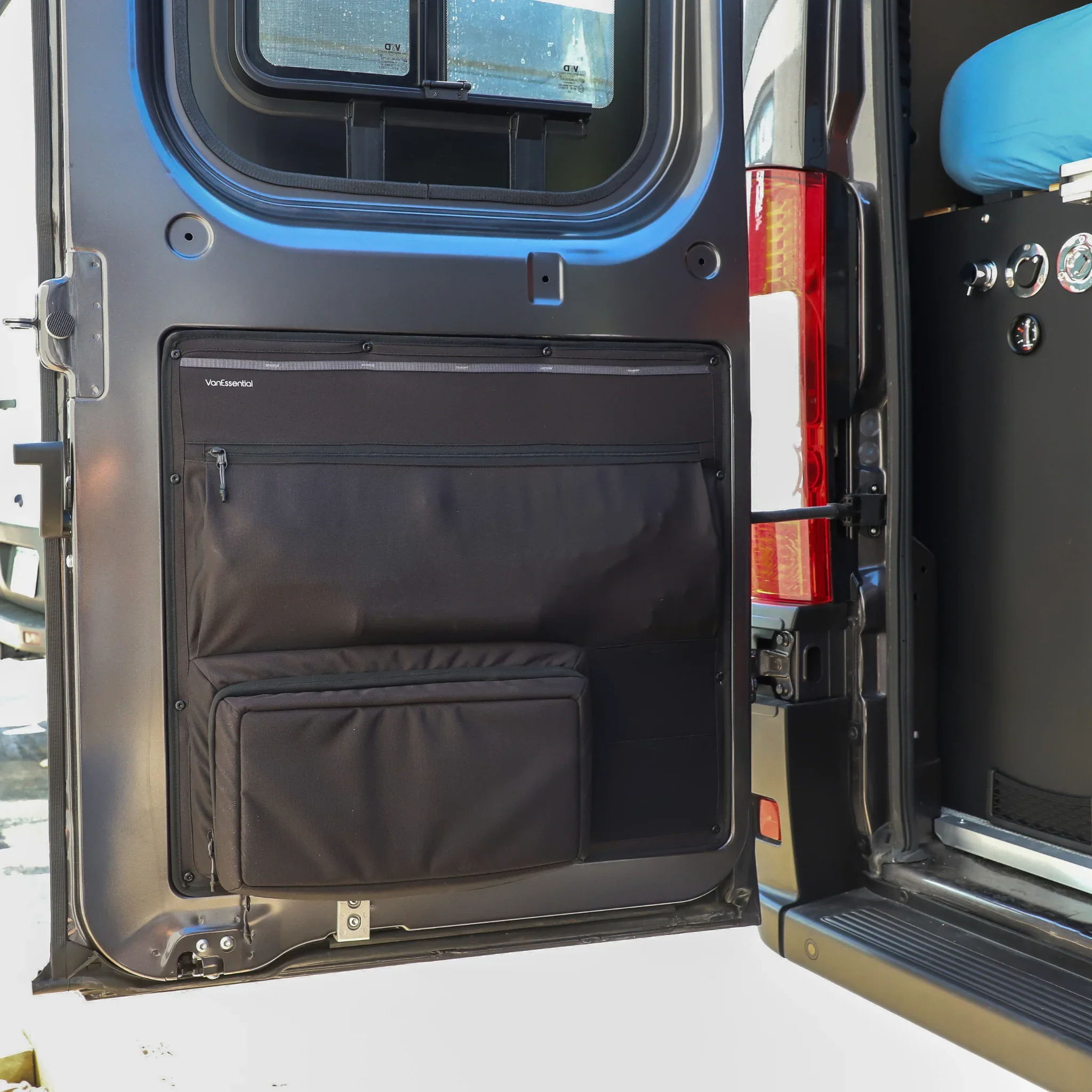

Van Essentials Lower Rear Door Storage
$300

These rear door panels add functional storage to an otherwise unused space.

Panel One: two mesh pockets, zippered pouch, zippered shelf with integrated mesh pockets, daisy chain storage

Panel Two: five large pockets with metal hook closure, daisy chain storage

MICROWAVE
$600

Find yourself eating out a lot and wanna heat up some leftovers the next day? Yea….us too. It also makes for a quick way to heat up a cup of water for coffee or tea. This upgrade changes some things. The Microwave goes into the pass through door area below the bed. Meaning you get a smaller passthrough door and a bit less garage space.

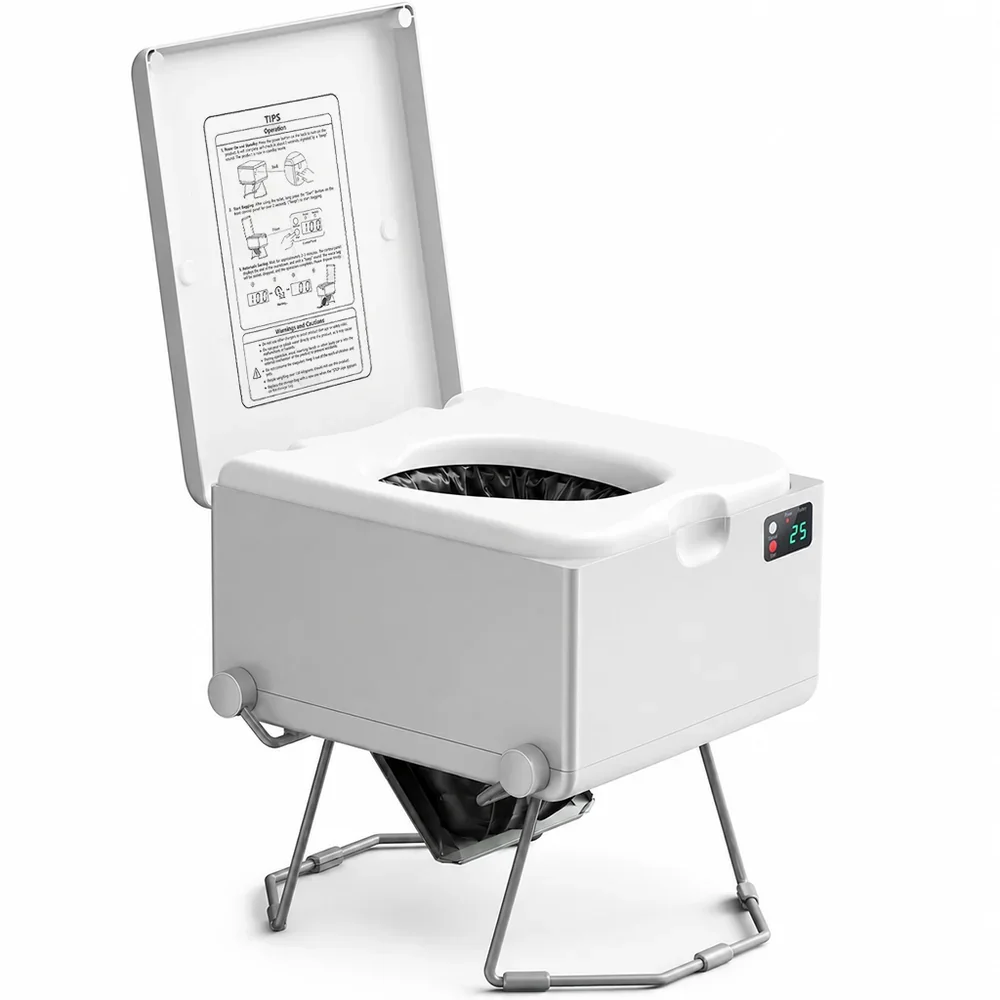

LAVEO DRY FLUSH TOILET
$800

A great toilet option for vans. It’s kind of like a diaper genie in a toilet. This toilet uses cartridges of mylar. After every flush the toilet automatically wraps the waste so there are no smells and gets a new clean bowl prepared for the next use. Each cartridge contains around 15 flushes. When it is empty you simply close up the trash back the mylar bags are sitting in and throw the trash bag away. Very easy. No smells. No mess.

Trelino Evo M Toilet
$320

Another alternative to our standard cassette toilet. The Trelino is a compact and easy to clean urine diverting toilet. To put it simply your urine is diverted into one container that you empty when needed and your poop goes into a separate container. When you are done you can close the trash bag and throw it away. Trelino estimates it can hold 6-12 poos before needing to empty it….if you want to do that.

Black out curtain
$200

A quick way to close off the front cab from the living area. A stainless steel wire stretches across the van and holds a blackout curtain that easily slides across to give you total privacy.
